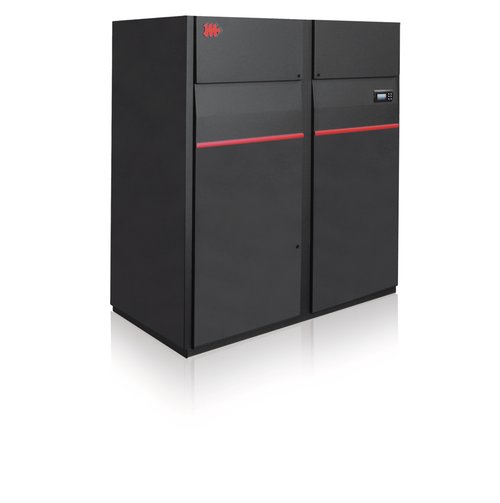

WATERCOOLED DIRECT EXPANSION FREE-COOLING UNITS WITH SCROLL COMPRESSORS AND EC INVERTER PLUG-FANS

_montair_FC_2015.png _montair_DX_2015.png _montair_Scroll_2015.png _montair_EC_plug_fan_inverter_2015.png _montair_EC_plug_fan_inverter_HIGH_ESP2015.png _montair_icon_refrigerant_R410A_14.png

Units with two separate cooling systems, a primary direct expansion circuit (DX) and a secondary chilled water circuit (CW). The units feature a microprocessor that manages 3 operating modes: DX only, MIXED and CW. Based on the external temperature, it allows to maximize the energy savings by intelligently managing the three operating modes. This type
of unit is especially suited for systems requiring particular RELIABILITY and ENERGY SAVING for the entire air-conditioning system.
The FOP range is equipped with EC Inverter Plug-Fans; High Head fans are available as accessories.
The EC Inverter Plug-Fans allow fuel consumption at partial loads to be reduced by up to 61% compared to radial fans, modulating the power consumption according to the required thermal load.
The FOP range is available in two air delivery configurations: FOPT with upflow and FOPB with downflow.
Unit supervision is developed by means of Modbus RTU protocol over RS485
serial interface as standard configuration. Other communication protocols and
interfaces are available as option.

Versions

  • FOPT/C - Top air discharge and frontal intake
  • FOPT/U - Top air discharge and frontal intake
  • FOPT/E - Top air discharge and frontal intake
  • FOPT/D - Top air discharge and frontal intake
  • FOPB/C - Bottom air discharge and upper intake
  • FOPB/U - Bottom air discharge and upper intake
  • FOPB/E - Bottom air discharge and upper intake
  • FOPB/D - Bottom air discharge and upper intake

Power range

  • 29.0-109 kW
  • 8.3-31.0 Ton

Factory fitted accessories

  • AP High ESP fans
  • SL Unit silencement
  • TE Electronic expansion valve
  • AR Air renewal inlet with filter
  • AT Constant air flow regulation control
  • AT/P Constant available static pressure regulation control
  • PF Differential pressure switch filters control
  • ES Electrical heater with step regulation
  • WS2 Hot water coil with 3-Way valve
  • PG Hot gas post-heating coil (with valve)
  • UMI Electrodes steam humidifier
  • SA Water alarm sensor
  • IST Modbus TCP/IP protocol, Ethernet port
  • ISB BACnet MSTP protocol, RS485 serial interface
  • ISBT BACnet IP protocol, Ethernet port
  • ISS SNMP protocol, Ethernet port
  • RE Adjustable minimum/maximum voltage and phase control relay

Loose accessories

  • MP Condensate drain pump
  • MP/U Condensate and humidifier drain pump
  • SB Fire sensor
  • SC Smoke sensor
  • CR Remote control panel
  • ZP Adjustable baseframe with shock absorbers (mod. B only)
  • ZA Adjustable baseframe with shock absorbers and deflector (mod. B only)
  • DL Bottom plenum for side connections (mod. T only)
  • BA Top vertical intake plenum with F7 efficiency filter (mod. B only)
  • BD Top frontal discharge plenum with grid (mod. T only)
  • DM Bottom frontal discharge plenum with grid (mod. B only)
  • BV Top discharge/intake plenum with damper
102910411048206620862110
PerformancesTotal cooling capacity (1)kW29,241,548,366,285,9109
Sensible cooling capacity (1)kW24,939,041,757,976,696,6
SHR (1)%85%94%86%87%89%89%
Total absorbed power (1)kW6,310,311,214,920,626,8
EER (2)4,634,034,314,444,174,07
Refrigerant circuitRefrigerant circuitsn°111222
Compressorsn°111222
Watercooled condenserWater flow (1)l/s1,652,382,753,754,906,26
Pressure drops (1)kPa313736373639
Total pressure drops with Free-Cooling coil (1)kPa777682799389
Free-Cooling coilTotal cooling capacity (2)kW27,940,341,157,978,597,5
Sensible cooling capacity (2)kW24,938,739,054,873,692,0
SHR (2)%89%96%95%95%94%94%
Fan sectionFansn°111223
Air flow (3)m³/h60001000010000142001920024000
Max. available static pressure - STD fansPa120150120370190310
Max. available static pressure - High ESP fansPa202020202020
FiltersTipoM5M5M5M5M5M5
Electrical characteristicsPower supplyV/Ph/Hz400/3+N/50400/3+N/50400/3+N/50400/3+N/50400/3+N/50400/3+N/50
Sound pressureFOPT - Top Air Discharge version (4)dB(A)626364636666
FOPB - Bottom Air Discharge version (4)dB(A)675859576060
ACCESSORIES & ADDITIONAL SECTIONSACCESSORIES & ADDITIONAL SECTIONS
Electrical heatingStepsn°333333
Electrical powerkW13,513,513,516,522,527,0
Hot water coilHeating capacity (5)kW9,813,013,017,724,531,6
Water flow (5)l/s0,470,620,620,851,171,51
Total pressure drops (5)kPa233636354341
Hot gas coilHeating capacity (6)kW10,510,510,514,319,825,6
Electrodes steam humidifierNominal steam productionkg/h88881515
Nominal powerkW6,06,06,06,011,311,3
WeightsTransport weight FOPT - Top Air Dischargekg4905375477028701034
Transport weight FOPB - Bottom Air Dischargekg5085545657329001070
Operating weight FOPT - Top Air Dischargekg4715175276808431001
Operating weight FOPB - Bottom Air Dischargekg4885345457108721037

Dimensions

102910411048206620862110
DimensionsLmm135013501350175022252625
Wmm890890890890890890
Hmm198019801980198019801980

Notes

  • 1 Ambient air temperature 24°C - R.H. 50%, water temperature 30°C / 35°C.
  • 2 Ambient air temperature 24°C - R.H. 50%, inlet water temperature 10°C.
  • 3 Air flow calculated with Available Static Pressure of 20 Pa.
  • 4 Sound pressure level calculated in free field conditions at 1,5 m height and 2 m distance. According to ISO 3744.
  • 5 Ambient air temperature 20°C, water temperature 45°C / 40°C.
  • 6 Temperatura aria ambiente 20°C.
